NinjaTrader 7 FootPrint / Orderflow Chart Settings using Pix Connect !

NinjaTrader 7 FootPrint / Orderflow Chart Settings using Pix Connect !

Orderflow Flow Chat is widely used in NinjaTrader 7 and 8, here will show you some basic settings which you can apply in your Orderflow/ Footprint for proper view.

Step 1:-  Open NInjaTrader 7

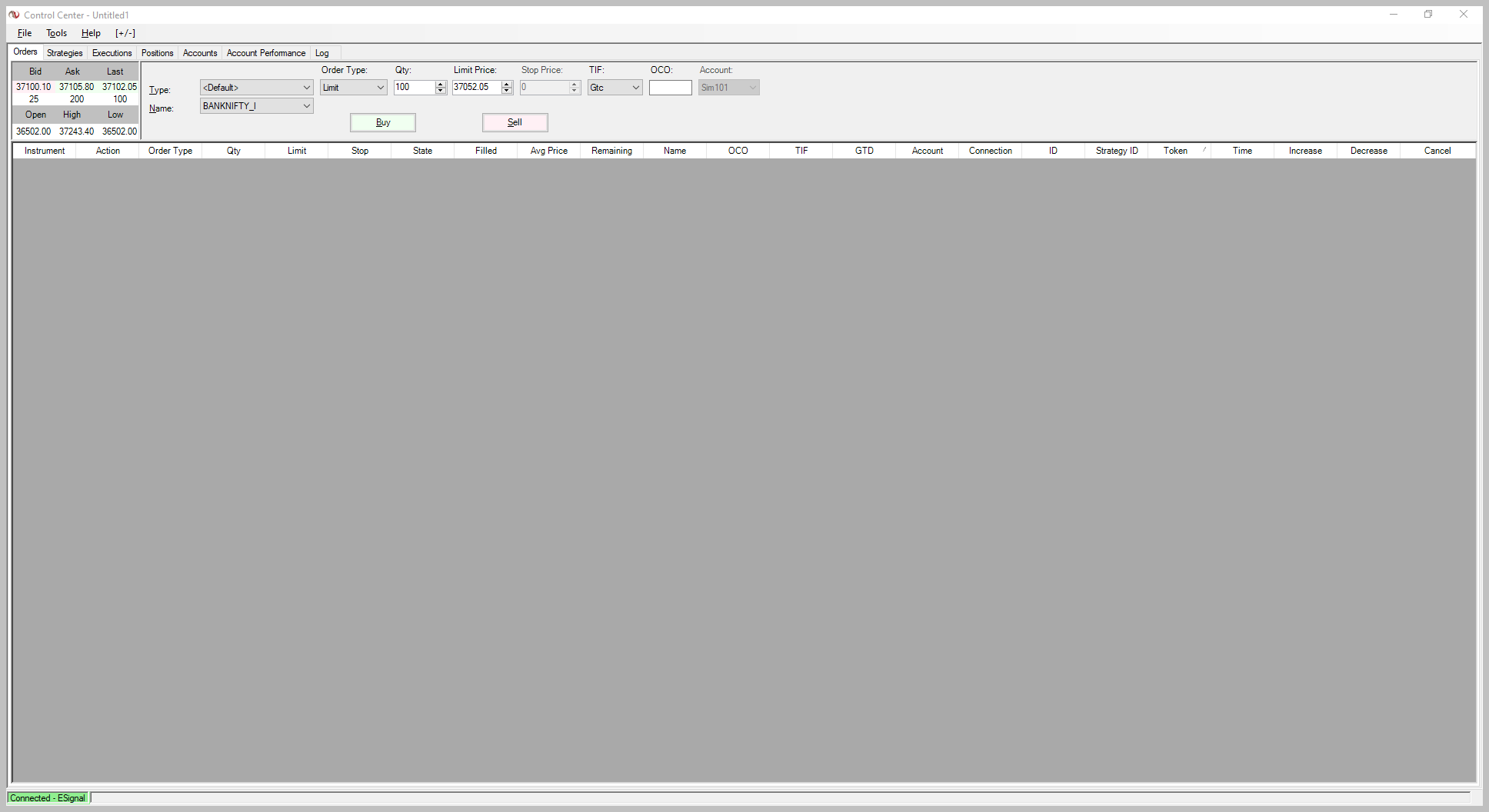

Step 2:- Now go to the File >> New >> Chart

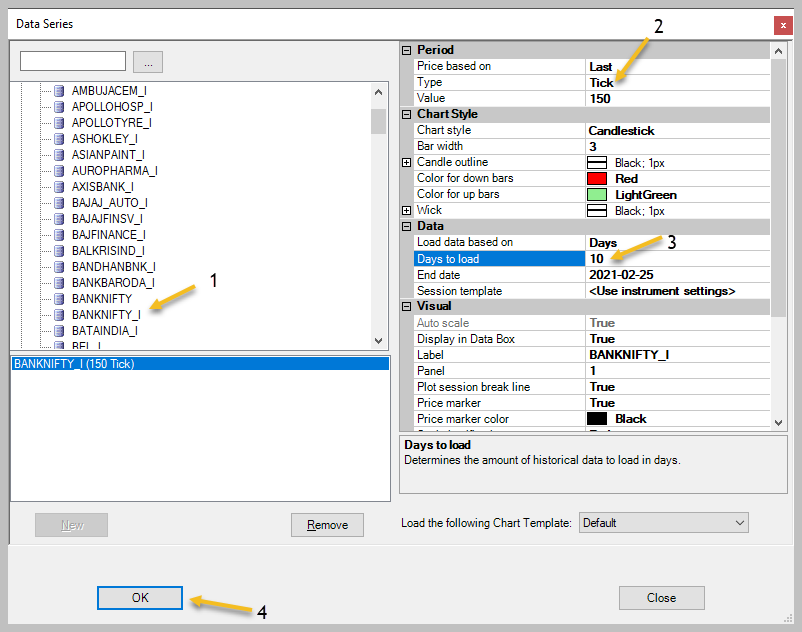

Step 3:-  Now Select the Script (BANKNIFTY_I)
Notes:-
1. Always Load the Chart in Tick Time frame
2. You can load a maximum of 10 days for fast loading.
3. Without Tick Chart, it will not load the order flow chart properly.



Step 4:-  Chart Loading



Step 5:- Now you can add the Orderflow/ FootPrint Indicator

Just Right Click on Chart >>  Indicators




Step 6:-  Loading Orderflow / Footprint Indicator.

Price Matrix Table:-



Notes:-
1. You need to select the Price Per Row as per the Stock Price
2. Filter Trade Size represents the Lot Size (If you are using Futures or Options)

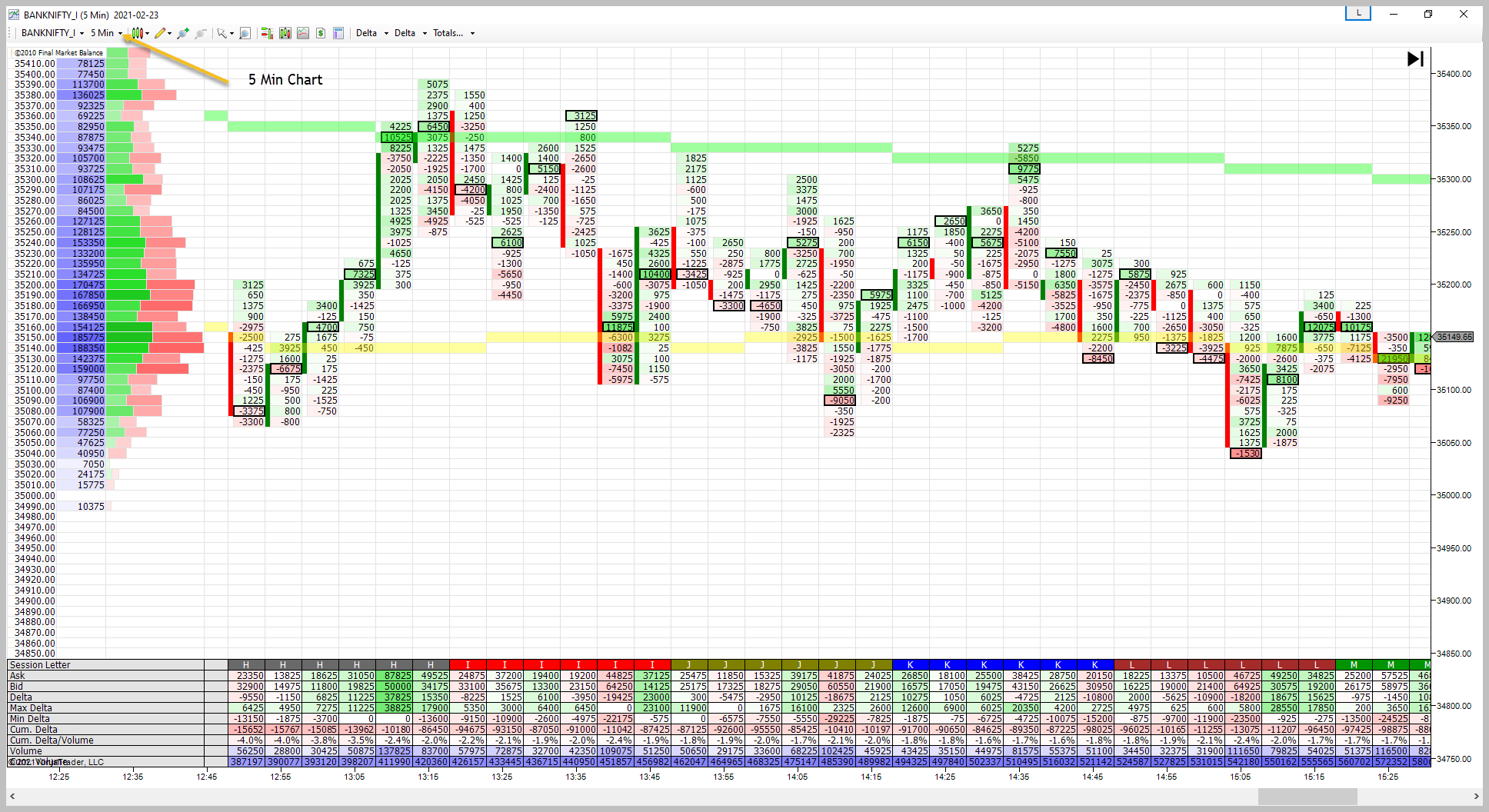

Step 7:-  Final Orderflow



5 Min Chart



Here, you can change the timeframe as per your analysis.

Wishing you the Happy and Most Profitable Trading!

We would love to help you, so please feel free to contact us for any help or support.

LIVE CHAT Support >> Click Here
E- Mail >>  support@accelpix.com
Call Support: +91 990 999 3349
